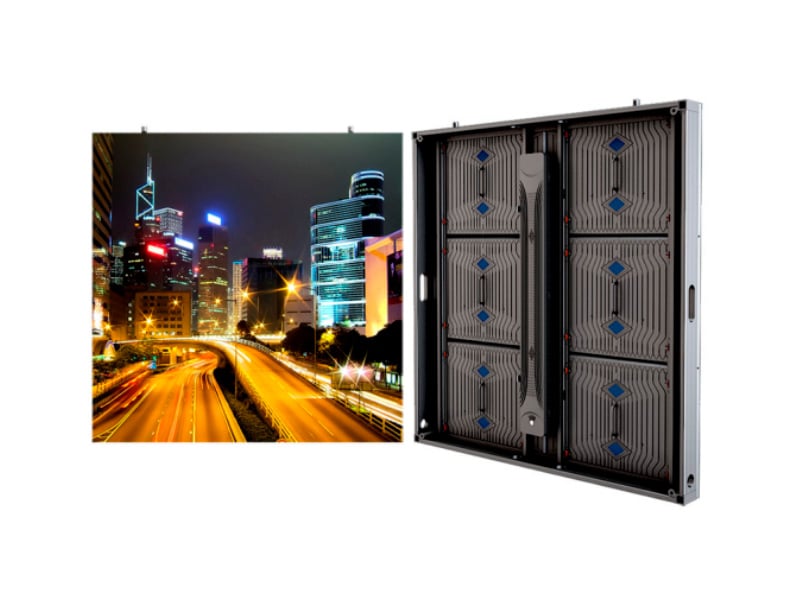

Outdoor Front Service LED Screen
-
Introduction
Introduction
| Module Parameter | Parameter/ Item No.: | FC57 | FC10 |
| Pixel Composition | 2727 3-in-1 LED | 3535 3-in-1 LED | |
| Pixel Pitch（mm） | 5.7mm | 10mm | |
| Module Resolution（W×H） | 84*56=4704 | 48*32=1536 | |
| Module Size（mm） | 480*320 | ||
| Module Weight（kg） | 2 | ||
| Input Voltage for Module（V） | 3.8 | 4.2 | |
| The Max Current for Module（A） | 25 | ||
| The Max Power for Module（W） | 95 | 131 | |
| Cabinet Parameter | Module Qty/Cabinet（W×H） | 2*3 | |
| Cabinet Resolution（W×H） | 168*168=28224 | ||
| Cabinet Size（mm） | 960*960 | ||
| Cabinet Area（m2） | 0.9216 | ||
| Cabinet Weight（kg） | 23 | 25 | |
| Cabinet Density（dots/m2） | 30625 dots/m² | ||
| Cabinet Evenness（mm） | ≤0.5 | ||
| Maintenance Method | Front and Rear Maintenance | ||
| Cabinet Material | Alumium Profile Material | Profile cabinet | |
| Optical Parameter | Single Dot Brightness Amended | Yes | |
| Single Dot Color Amended | Yes | ||
| White Balance Brightness（nits） | 5500 | 6000 | |
| Color Temperature（K） | 9000-13000, being adjustable | ||
| Visual Angle（Horizontal/Vertical） | 140°/120° | ||
| Brightness / Colorful Evenness | ≥99% | ||
| Contrast Ratio | 5000:01:00 | ||
| Electric Parameter | The Max Power Consumption（W/m²） | 650 | |
| Average Power Consumption（W/m²） | 218 | 230 | |
| Input Voltage (V) | 200-240 | ||
| Performance Parameter | Frequency（Hz） | ≥60 | |
| IC Driving | Constant Current, 1/7 Scanning | 1/2 Scan | |
| Grayscale | It is available within 65536 | ||
| Refreshing Ratio（Hz） | 3840 | ||
| Color Processor | 12 bit | ||
| Lifespan（hrs） | 100,000 H | ||
| Work Temperature/Humidity（℃/RH） | -10℃-50℃/10%RH-98%RH (Non Condensing) | ||
| Storage Temperature/Humidity（℃/RH） | -20℃-60℃/10%RH-98%RH (Non Condensing) | ||
Details:

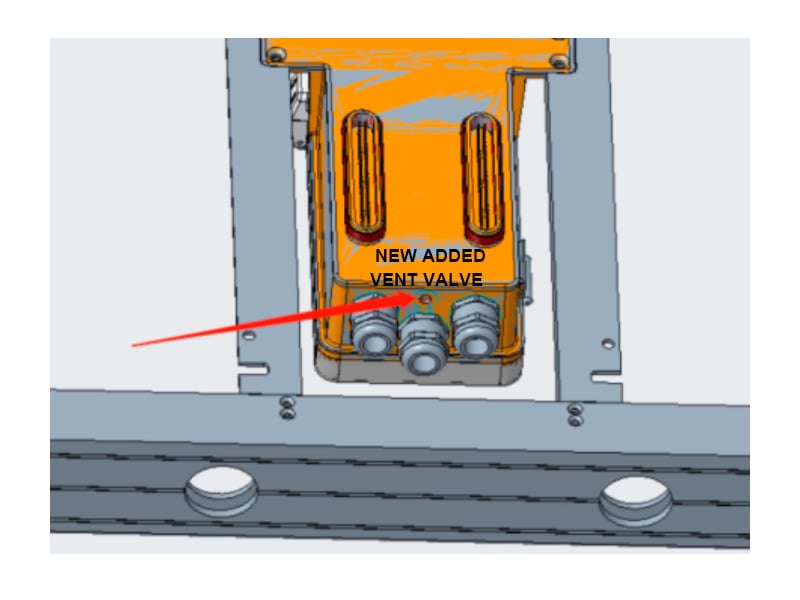

1. New Added Vent Valve
For the energy saving series of LED display, a vent valve has added in the bottom of power cabinet, it can adjust inner gas pressure, recoil temperature rise and balance inner environment.
2. Strong Adaptability for outdoor environmental condition:

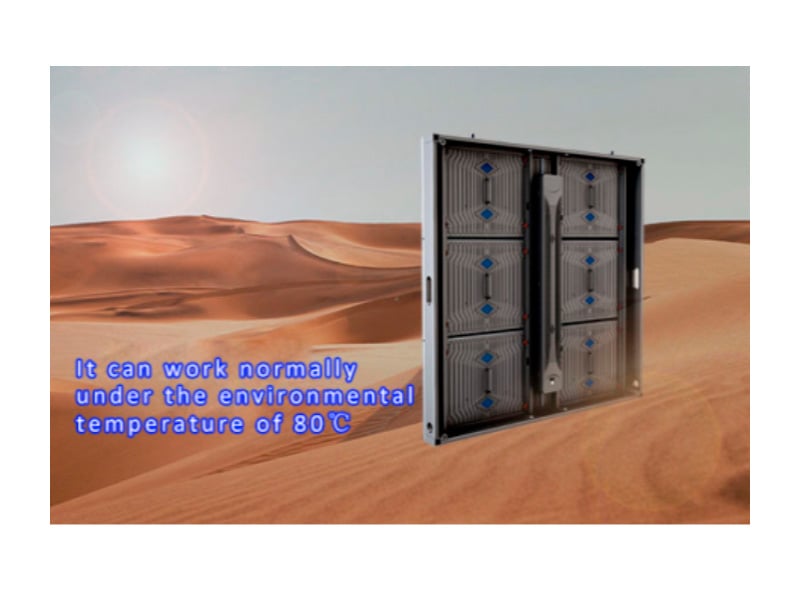

(1) It can work normally under the environmental temperature of 80℃;

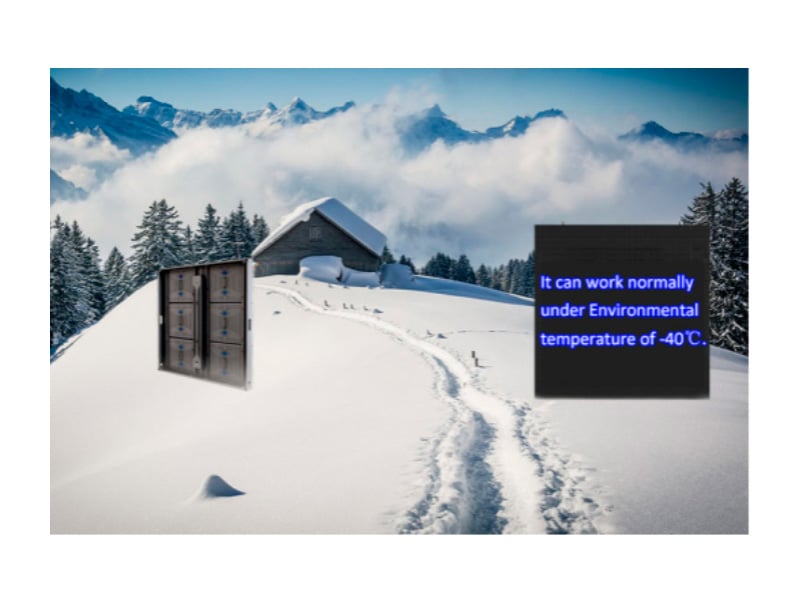

(2) It can work normally under environmental temperature of -40℃;

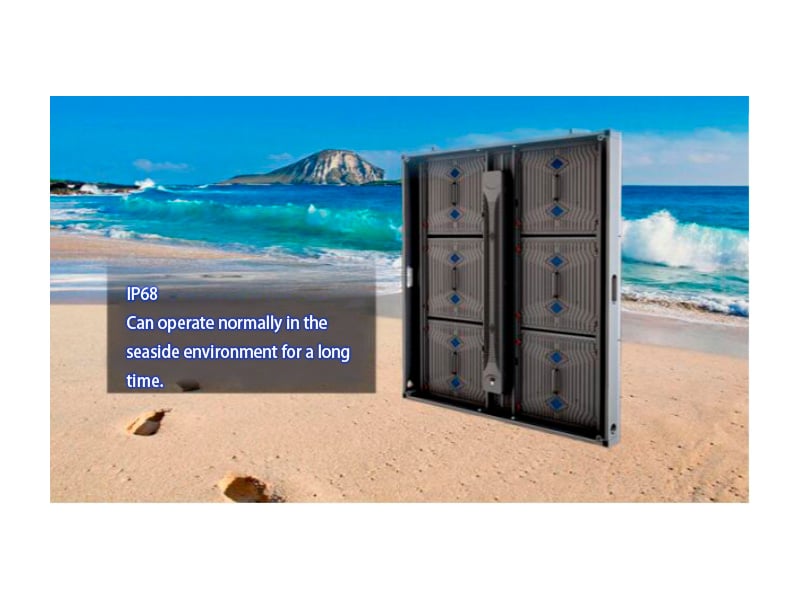

(3) It can work under the environment of seaside all the time.
3. Structural Hard Link, Wireless Design
The product structure is to adopt hard link, wireless design, its appearance is tidy and beautiful.
4. Aluminum Profile Cabinet, Lightweight, Safety and Reliability, No Distortion
Energy saving series of LED display is to adopt aluminum profile cabinet, the weight of single cabinet is just 25KG, display module is die-casting aluminum material, it is fire resistance, no distortion even it is under the high environmental temperature.
5. Front Installation for Cabinet
Components for cabinet installation include: module, cabinet, system board, power board, system card, power supply, to fix cabinet, connector sheet for rear installation.
6. Product Application

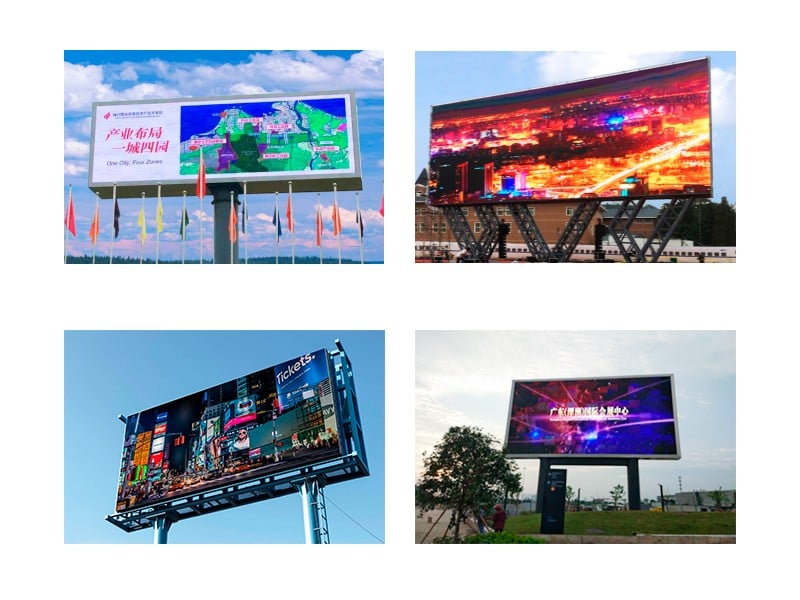

Application field: It is mainly used for various of exterior building advertisement, airport, government culture and vertical advertisement in high speed road, etc.
