Outdoor Transparent LED Screen
-
Introduction
Introduction
| ITEM | HD OUTDOOR TRANSPARENT LED SCREENS | ||||||
| Product model | SJ-P3.91 | SJ-P7.81 | SJ-10.41 | SJ-P15.6 | SJ-P16.6 | SJ-P25 | SJ-P31.25 |
| Pixel pitch | 3.91-7.81mm | 7.81mm | 10.41mm | 15.6mm | 16.6mm | 25mm | 31.25mm |
| Physical density | 32768dots/m² | 16384dot/m² | 9126dots/m² | 4096dots/m² | 3600dots/m² | 1600dots/m² | 1024dots/m² |
| LED Package | SMD 1921 (3in1) | SMD 2727 (3in1) | SMD 3535 (3in1) | ||||
| Driving method | 1/16S | 1/8S | Constant current,static | ||||
| Interface definition | HUB-16P | ||||||
| Cabinet size | 1000mm*500mm/1000mm*1000mm | ||||||
| Cabinets weight | 20kg/m² | ||||||
| Cabinets resolution | 256*256 | 128*128 | 96*96 | 64*64 | 60*60 | 40*40 | 32*32 |
| Equilibrium brightness | 5000-6500cd/m² | ||||||
| Power consumption | Max:≤800W/m², Average:≤400W/m² | ||||||
| Refresh rate | ≥3840Hz (ICN2055 Driving IC) | ||||||
| Viewing angle Level | H: ≥160°Optional, V: ≥120°Optional | ||||||
| Viewing distance | 4-30m | 8-100m | 10-150m | 16-200m | 17-220m | 25-250m | 30-300m |
| Temperature | Working : -25℃~60℃, Storage: -35℃~80℃ | ||||||
| Humidity | 10%~90% | ||||||
| Working voltage | Input: AC 100V~240V, 50Hz/60Hz, Output: DC 5V | ||||||
| Maintenance method | Front/Back service | ||||||
| Protection grade | Front: IP54, Back: IP65 | ||||||
| Lifetime | 100,000 Hours | ||||||

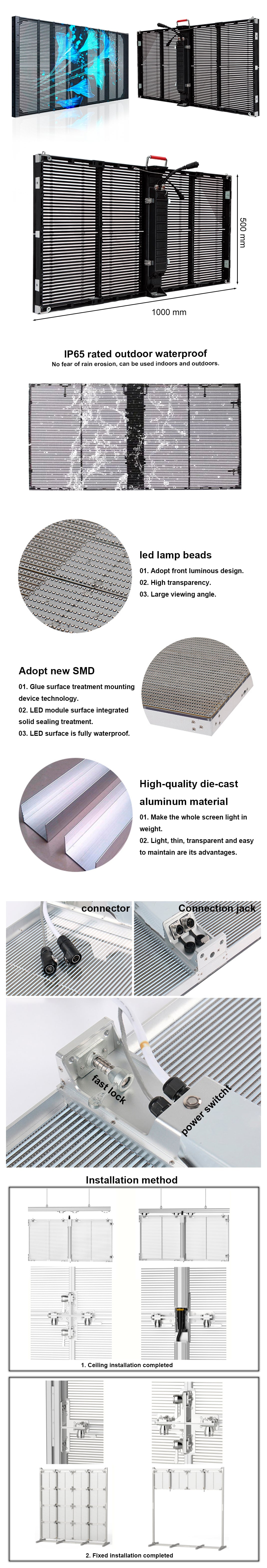

Details:
1. Characteristic:
The transparent led display as a new glaring star in led display area with comprehensive advantages. It is a outstanding product which well beautify modern glass building, also enlarge the building function for adverts. It will be the trend in the next 5 years.
Durable and Stable
No structure for small size
Easy Installation Maintenance
Customized Size for different glass size
High Transparency
2. IP65 Waterproof / UV Resistant
IP65 Waterproof, UV Resistant: working temperature-40-60 c, adapt to all weather.
3. High Transparency
With unique transparency, up to 93%, allows daylight sunlight to filter through, It looks like a window-shades when come near and nothing you can find if far away from it, Get-noticed digital video on the front of the display.
4. Fast Maintenance
Glass led video wall led display is stable and safe when light on. Only take out one led bar loosing the bracket, you can easily change the defective led within 30s.
5. Humanized Installation
This transparent led display without any steel frame cabinet, you can directly hang it onto the wall with hanging beam. And all the cables are hidden to ensure the gorgeous of the whole module.

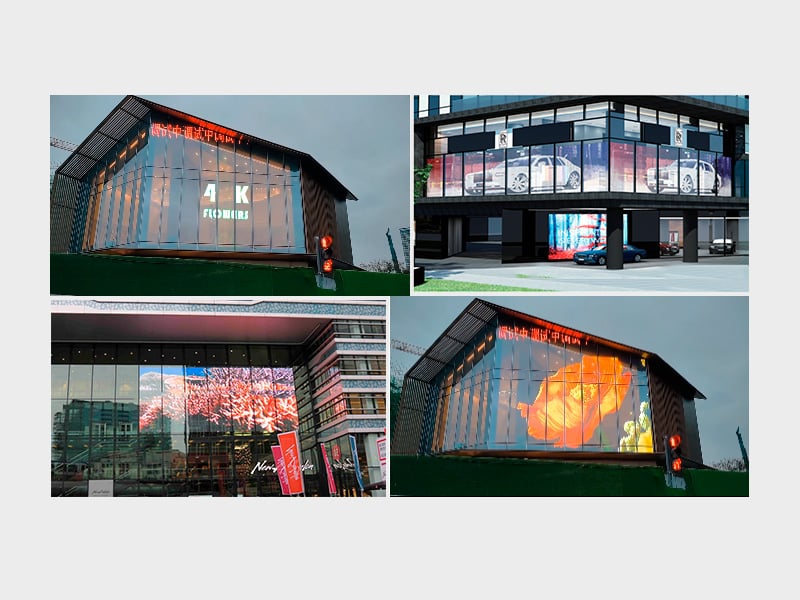

6. Application Field
Transparent LED screen technology for shopfitting and integration. Pixel pitch P10,P15.6,P31, commonly used in outdoor advertising big screen, landmark large screen, street advertising wall screen, stadium etc. Transparent LED Screen offers an effective and striking alternative to Large Format LED Screens. Highly customizable, can be designed to create attention-getting displays.
